Easy to install right out of the box!
- Clean and sweep the underlay
- Open the Dream Heat box and lay out the product on the underlay.
- Tape down the Dream Heat and connect the wires to the thermostat.

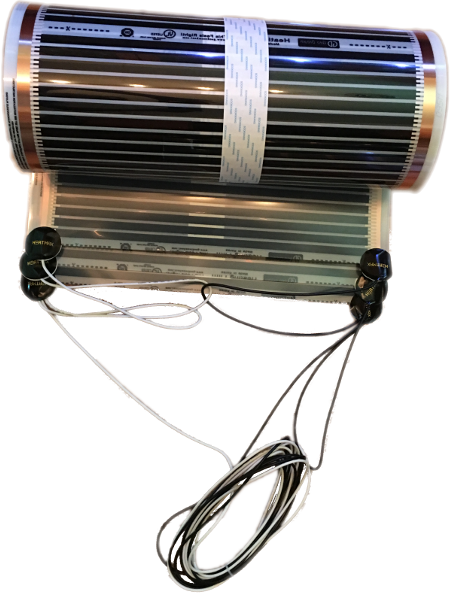

Structure
Far infrared heat is generated from carbon fiber strips that are attached to silver contact bus bars connected to copper electrical strips. The silver provides superior electrical current transmission while preventing arcing at contact points.
The components are then completely sealed between two plastic sheets of PET film - similar to soda bottle material, the film is thin, transparent, and very durable. All the components used making film are UL listed.
Part |
Function |
Material |
Production Standard |
|
| Insulating |
Base Film |
PET | Insulation and Moisture Barrier. Component is UL listed. | |
|
Laminating Film |
||||
| Heating | Carbon Doping | Carbon | Maintaining resistance, even print surface. Component is UL listed | |
| Conductive | Bus Bar | Copper | Maintaining conductivity and adhesion. Component is UL listed. | |
| Doping | Silver |
